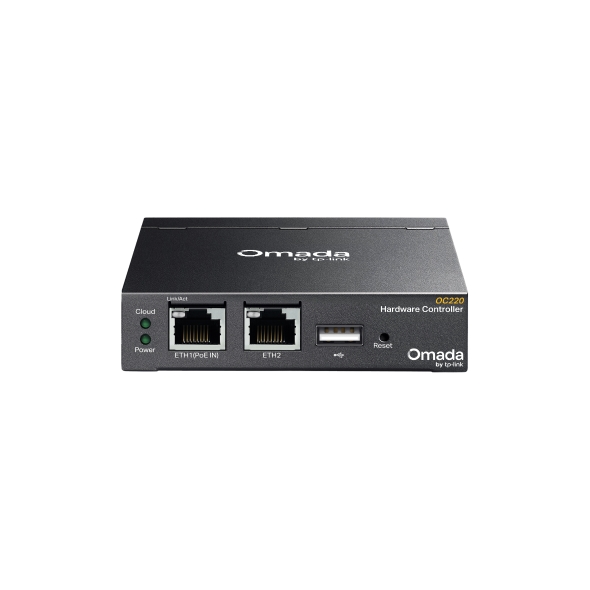

Omada Hardware Controller
- Centralized Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs*
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- On-Premises Management: Locally monitor and manage devices with the ultimate stability and complete privacy.
- Hardware Design for Businesses: Features a powerful chipset, durable metal casing, USB 2.0 port for data backup, and two Gigabit Ethernet ports.
- Flexible Deployment: Powerd via 802.3af PoE or Micro USB (DC 5V/Minimum 1A) with a compact desktop or wall mount installation.
| HARDWARE FEATURES | |
|---|---|
| Interface | • 2× Gigabit Ethernet Ports • 1× USB 2.0 Port • 1× Micro USB Port |
| Power Supply | • 802.3af PoE • Micro USB（DC 5V/Minimum 1A） |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (100×98×25 mm) |
| MANAGEMENT FEATURES | |
|---|---|
| Omada App | Yes |
| Centralized Management | • 100 Omada access points • 10 Omada gateways • A maximum of 20 Omada switches* • A maximum of two select DeltaStream GPON OLTs*Note: Please refer to <href=”https: www.omadanetworks.com=”” en=”” business-networking=”” all-omada=”” “=””>www.omadanetworks.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC220 *The number of supported Omada switches decreases by five for each DeltaStream GPON OLT added. The DeltaStream GPON OLTs supported by the controller are DS-P7001-04 and DS-P7001-08.</href=”https:> |
| Cloud Access | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • Omada Hardware Controller OC220 • Quick Installation Guide • RJ45 Ethernet Cable |
| System Requirements | Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | • Operating Temperature: -5–50 ℃ (23–122 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
